Description

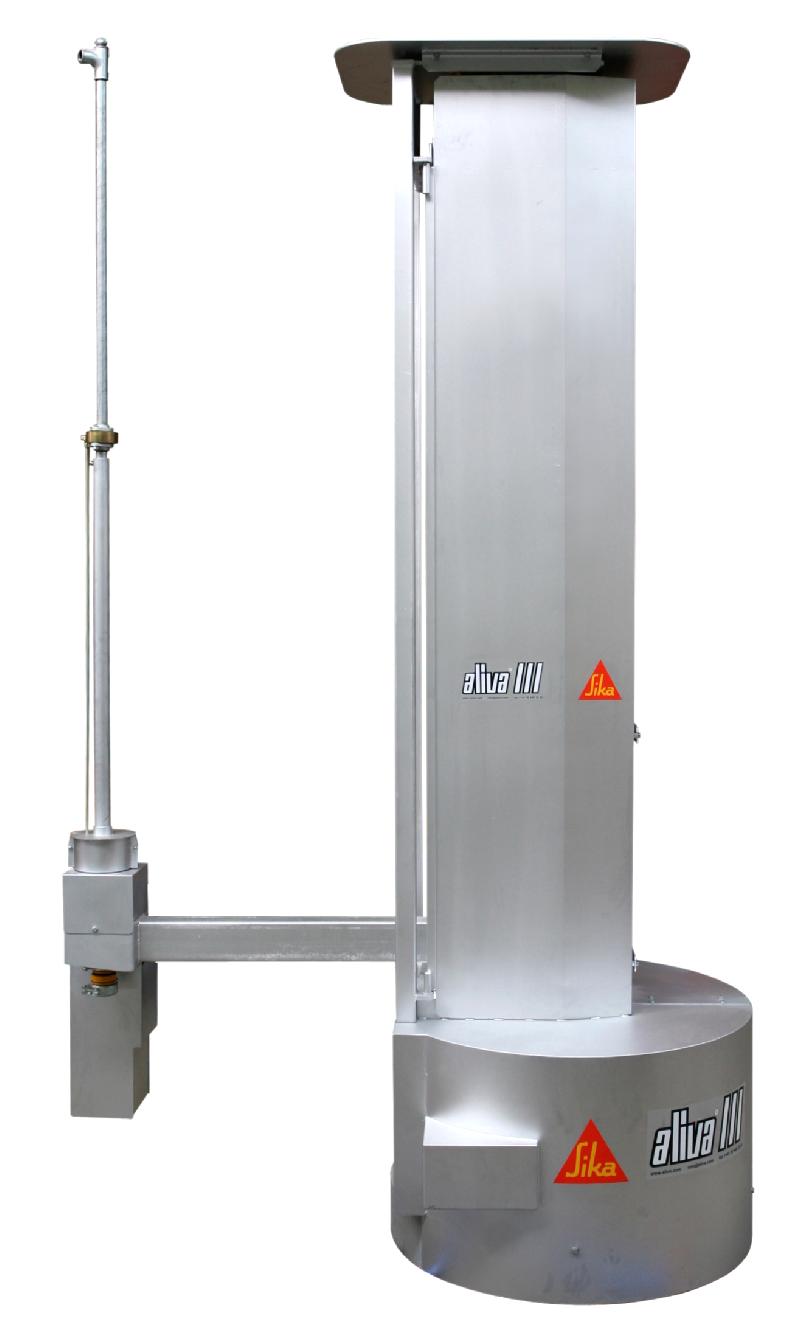

The degassing nozzle liner Aliva -571 is built for automatic/manual spraying inside of the nozzles of RH-Degassing Units.

After spraying the inside of one nozzle the spraying unit will be rotated by 180 degrees.
In this position, the remaining untreated surfaces of the degassing nozzles may be treated the same way as mentioned above, if required by using different program settings.

Technical and design modifications remain reserved at all times. Technical properties have been achieved under theoretical and normal conditions. Please consult the respective machine manual for all matters related to operations and maintenance.

Technical Data

Voltage                                  3x200-500V

requency                              50/60 Hz

Installed power approx.           10 kW

Control voltage                       24 V DC

Controlled by                          PLC (Siemens)

Air pressure                            6 bar

Air consumption approx.          8 m /min3

Water pressure min.                4 bar

Water consumption approx.     350 l/h
