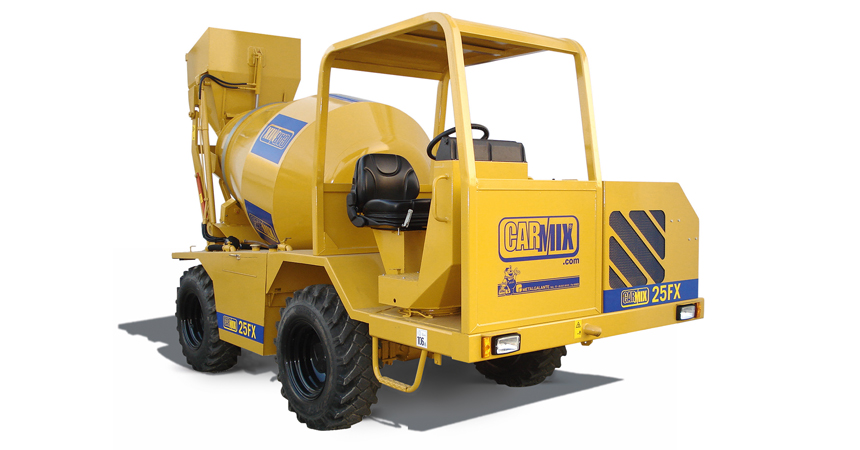

CARMIX 25 FX
SELF-LOADING CONCRETE MIXER

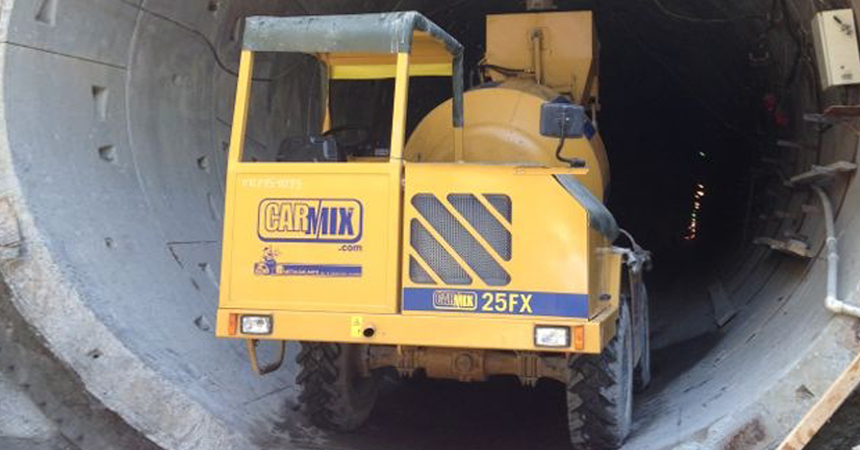

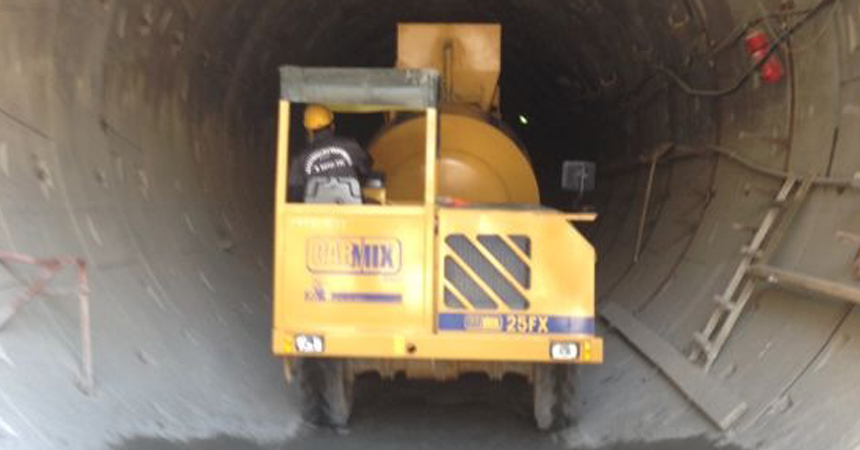

Self-loading concrete mixer 4×4 with 3,450 litre drum (759 gal UK – 911 gal US), front shovel equipped with hydraulic opening gate operating speed from 0 to 10 km/h (0 – 6,21 mph) and road transfer speed from 0 to 24 km/h (0 – 14,91 mph) with electric servo-control. Carmix 25 FX is especially engineered for off-road operations.
MIXING UNIT
Concrete mixer: drum capacity 3.450 liters (759 gal UK – 911 gal US). Concrete output: 2,5 m3 per batch. EN 206-1 SLUMP S1 class, yield no vibrated. Double mixing screws, cover for emergency unloading. Mixing and discharging speed indipendent from r.p.m. of diesel engine. Discharging by reversing drum.
ENGINE
Perkins 1104D-44T Turbo-Diesel, water cooled, 4 cylinders. Power KW 62,5 (84 HP) set at 2200 rpm.
TRANSMISSION
Hydrostatic Bosch-Rexroth. Heavy duty differential axles with planetary reducers. Front axle swinging and steering. Rear axle fixed.
AXLES
Dana Spicer with oil bath disc brakes and planetary reducers.
SPEED
Working speed from 0 to 10 km/h (0 – 6,21 mph), road transfer from 0 to 24 km/h (0 – 14,91 mph). Electric servo control.
DRIVING SEAT
ROPS-FOPS canopy. Reversible seat with automatic inversion of hydraulic steering circuit.
HYDRAULIC SYSTEM
The hydraulic concrete mixer system is composed by 3 indipendent circuits. 2 variable outlet pumps for hydrostatic transmission and drum rotation. 1 pump for services. Inlet and outlet fi lter. Heat exchanger water/oil-air type.
LOADING SHOVEL
Effective capacity per load 400 liters, complete with hydraulic opening gate.
CHUTE
Slewing and hydraulically tilting.
WATER SYSTEM
Self-contained. Hydraulic driven water pump, water meter, washing outlet.
GRADIENT
Fully loaded 30%
BRAKES
Oil bath disc brakes inside differential axles. Twin indipendent circuits. Negative hydraulic parking brake.
TYRES
Off road industrial type 12.5-20 PR 12.
STEERING
Hydrostatic “load sensing”. Radius: internal mm. 2550, external mm. 5100.
ELECTRIC SYSTEM
12 Volt. 120 Ah battery for electric starter and road lighting. Safety battery cut-off.
TANKS
Water: 2 x 275 liters (2 x 60 gal UK – 2 x 72 gal US). Diesel: 100 liters (22 gal UK – 26 gal US). Hydraulic oil: 70 liters (15 gal UK – 19 gal US).
CHASSIS
Steel profile specially engineered for off-road operations.
WEIGHT
In running order Kg. 5.300 (11.648 lb) equally distributed on both axles.
SAFETY
Machine equipped with checking and block valves for maximum safety of the operator.
CATALOGUE
The concrete mixer machine is equipped with Use and Manteinance and Spare Parts Manuals according to CE regulations.
