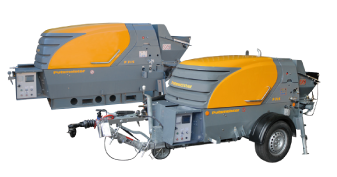

Putzmeister Underground รุ่น SPM 715 SYNCHRO

General Data

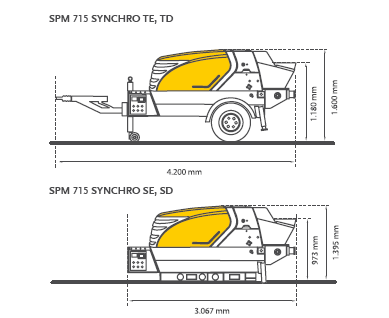

Trailer Pump (TE,TD)

Chassis : With brakes

Weight : 1.900 Kg. / 1.950 Kg. with Diesel motor

Length : 4.200 mm.

Width : 1.510 mm.

Height : 1.600 mm.

Hopper filling height : 1.180 mm.


Stationary Pump (SE,SD)

Chassis : Skid frame

Weight (empty) : 1.800 Kg. / 1.850 Kg. with Diesel motor

Length : 3.067 mm.

Width : 1.395 mm.

Height : 1.395 mm.

Hopper filling height : 973 mm.

Concrete Pump

Version electric motor (TE,SE)

Pump : 2-cylinder,hydraulically driven

Drive : Electric motor (TE,SE)

Power : 30 kW,400V 50 Hz o 440V 60 Hz

Theor. Concrete flow : 4-18, 2 m3/h

Concrete pressure : 68 bar

Cylinder diameter / piston brake : 150 mm. / 700 mm.

Stroke per minute : 27 / min.

Maximum particle size : 16 mm.

Hopper : TS 323 – Agitator in hopper and grill with electric vibrator. Steel or polymer fibre pumping. Easy to open for maintenance and cleaning.

Hopper capacity : 250 l. / 280 l.

Concrete pipe : Out Ø 100 mm. reduction to 65 mm. (4,5”/3”)

Putzmeister synchronized additive pump

Type : Persistaltic pump,hydraulically operated

Synchronization : With automatic dosing device, proportional to concrete flow

Control system : Closed blood regulation and controlled by PLC

Adjustment range : 40-400 l/h

Max. Working pressure : 10 bar

Optional equipment

Equipment for manual concrete spraying

Centralized lubrication system

Radio remote control

High pressure cleaner

Crane eye
