Product Information :

Name :
CARSILOS
Category :
  1. เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
  1. Carmix
Brand :
Carmix
Product Type :
  1. สินค้า, ผลิตภัณฑ์
Short Description :
CARSILOS HORIZONTAL CEMENT SILOS

Product Detail :

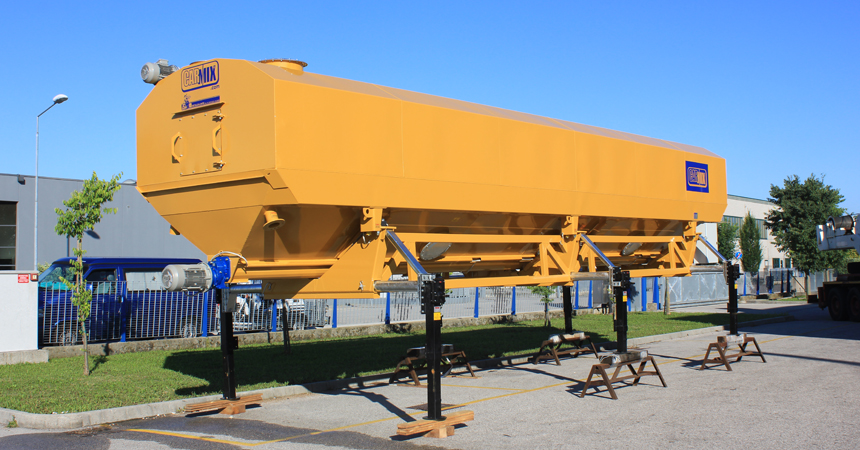

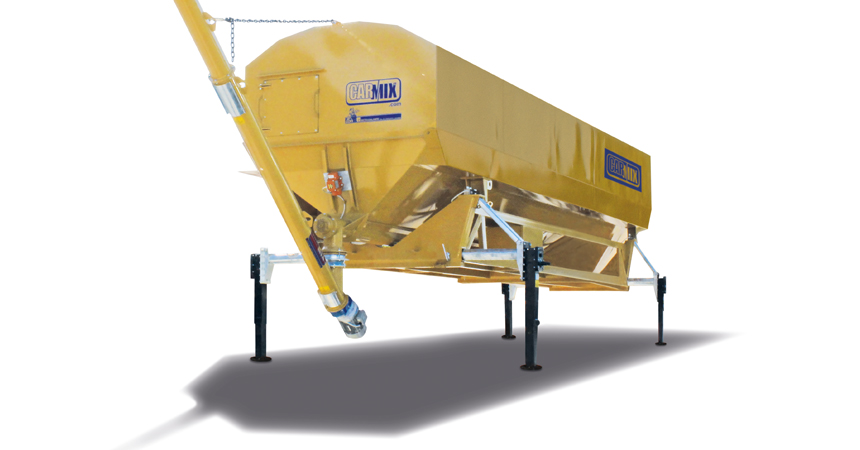

CARSILOS




HORIZONTAL CEMENT SILOS

Horizontal cement silos with flexible conveyor screw for material and electronic weighing system.

Carsilos optimises site productivity. It is available in the 15,28 and 38 m3 versions and consists of:

  • Electronic load cell weighing system, control display and process management.
  • Main frame with system for positioning and release from the vehicle, without requiring the assistance of lifting machines.
  • Vibration system to facilitate the flow of cement. conveyor and discharge screw directly at the required height, with possibility of adjustment. Electronic control panel complete with the safety systems required by current European standards.








CARSILOS 15

CARSILOS 28

CARSILOS 34



TOTAL STORAGE CAPACITY:

15 m3

28 m3

34 m3

ESTIMATED PRODUCTION:

320 kg/l

320 kg/l

320 kg/l

PLANT UNLADEN MASS:

6172 lb

7716 lb

8818 lb

POWER ABSORBED:

9 kW

12 kW

12 kW

 THREE-PHASE INPUT VOLTAGE:

380V , 50Hz

380V , 50Hz

380V , 50Hz
