Product Information :

Name :
CARMIX 3500 TC
Category :
  1. เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
  1. Carmix
Brand :
Carmix
Model :
CARMIX 3500 TC
Product Type :
  1. สินค้า, ผลิตภัณฑ์
Short Description :
Off-road mobile batching plant with a 4.850 litre drum

Product Detail :

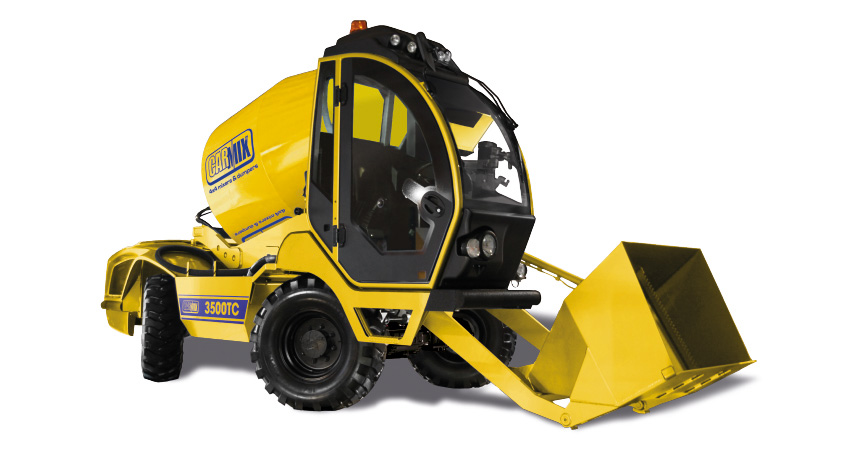

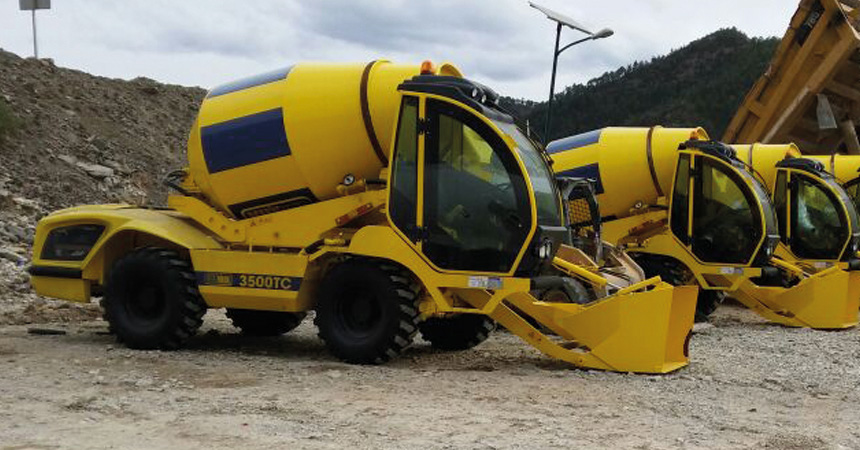

CARMIX 3500 TC



Off-road mobile batching plant with a 4.850 litre drum ((1.066 gal UK – 1.281 gal US) equipped with ultimate “4 sensors” electronic scale, easy to use and extra accurate for any kind of mix design. The new Carmix machine presents a new cab comfort in order to guarantee safe and visibility to the operator. Moreover 3500 TC has Promix technology which allow to analyze your concrete: slump, volume, temperature, aridity and ready-mix indicator. Find more info in the tabs below.

MIXING UNIT

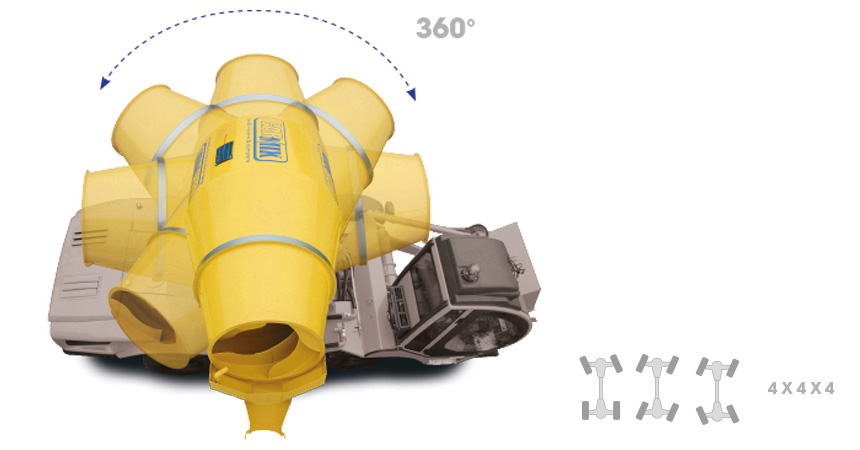

Concrete mixer: drum capacity 4.850 liters (1.066 gal UK – 1.281 gal US). Concrete drum output: 3,5 m3/IN. EN 206-1 IN SLUMP S1 Class, yield not vibrated. Double mixing screws, cover for emergency unloading. Drum rotation by hydraulic motor and planetary reducers. Mixing and discharging speed indipendent from r.p.m. of diesel engine. Discharging by reversing drum. The mixing unit is slewing hydraulically through 270° for high discharge over 2 m on the four sides of the vehicle.

ENGINE

Perkins 1104 D-44 TA Turbo-Diesel, watercooled, 4 cylinders. Rated power KW 83 (111 HP) set at 2.300 rpm. Engine mounted transversal on the rear.

TRANSMISSION

Hydrostatic Bosch Rexroth. Pump and motor are connected to the differentials through a 2 speed reducer (working and transfer). 4 wheel drive and steering.

AXLES

Dana Spicer with oil bath disc brakes and planetary reducers.

SPEED

Working speed from 0 to 9 km/h (0 – 5,59 mph), road transfer from 0 to 25 km/h (0 – 15,53 mph) . Electric servo control.

CABIN

New: comfort, safe and visibility matching edge design. Front cab on side of loading shovel. ROPS-FOPS type (UNI 11023). Clima, air conditioning heater available upon request.

HYDRAULIC SYSTEM

Three circuits. 2 variable outlet pumps for hydrostatic transmission and drum rotation. 2 gear pumps for services. Inlet and outlet filter. Heat exchanger water/oil-air type.

JOYMIX

All hydraulic functions of shovel controlled by a single fully servo controlled Joystick.


CONCRETE-MATE

Ultimate “4 sensors” electronic scale, easy to use and extra accurate for any kind of mix-design.

PROMIX

In-drum probe, easy allows to anayze your concrete: slump, volume, temperature, humidity and ready-mix indicator: your on site Lab. (On request)

LOADING SHOVEL

Effective capacity per load 600 liters (131 UK gal – 158 US gal), complete with hydraulic opening gate.

CHUTE

Slewing and hydraulically tilting. Fitted with two pins easily detachable to increase the discharge height.

WATER SYSTEM

Self-contained. Hydraulic driven water pump, water meter, washing outlet. High pressure water pump (on request).

GRADIENT

Fully loaded 30%.

BRAKES

Oil bath disc brakes inside differential axles. Twin indipendent circuits. Negative hydraulic parking brake.

TYRES

Off road industrial type 16/70-20 PR 14.

STEERING

Hydrostatic. 3 ways steering. Radius: internal: mm. 1700, external mm 3.700.

ELECRIC SYSTEM

12 Volt. 120 Ah battery for electric starter and road lighting. Safety battery cut-off.

TANKS

Water: 2×400 liters (2×87 gal UK – 2×105 gal US). Diesel: 115 liters (25 gal UK – 30 gal US) . Hydraulic oil: 80 liters (17 gal UK – 4 gal US).

CHASSIS

Steel profile specially engineered for off-road operations.

WEIGHT

About Kg. 7.400 (16.314,2 lb). Equally distributed on both axles.


SAFETY

Machine equipped with checking and block valves for maximum safety of the operator. Self control avoids drum to slew if shovel’s arm is lifted.

CATALOGUE

The concrete mixer machine is equipped with Use and Manteinance and Spare Parts Manuals according to CE regulations
