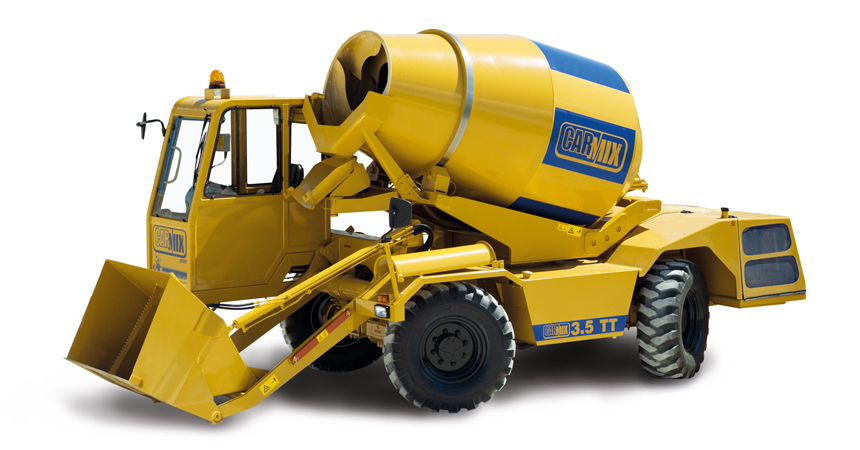

CARMIX 3.5 TT SELF-LOADING CONCRETE MIXER

Product Detail :

CARMIX 3.5 TT

SELF-LOADING CONCRETE MIXER

Self-loading concrete mixer 4×4, with 4.850 litre drum (1.066 gal UK – 1.281 gal US), 600 litre shovel (131 UK gal – 158 US gal), equipped with hydraulic opening gate for drum discharge and a operating speed from 0 to 9 km/h (0 – 5,59 mph) and road transfer speed from 0 to 25 km/h (0 – 15,53 mph) with electric servo-control. The chassis of 3.5 TT is especially engineered for off-road operations to let you work in every kind of ground. The concrete mixer machine is equipped with checking and block valves which guarantee maximum safety of the operator.


MIXING UNIT

Concrete mixer: drum capacity 4.850 liters (1.066 gal UK – 1.281 gal US). Concrete drum output: 3,5 m3/IN. EN 206-1 IN SLUMP S1 Class, yield not vibrated. Double mixing screws, cover for emergency unloading. Drum rotation by hydraulic motor and planetary reducers. Mixing and discharging speed indipendent from r.p.m. of diesel engine. Discharging by reversing drum. The mixing unit is slewing hydraulically through 270° for high discharge over 2 m on the four sides of the vehicle.

ENGINE

Perkins 1104 D-44 TA Turbo-Diesel, watercooled, 4 cylinders. Rated power KW 83 (111 HP) set at 2.300 rpm. Engine mounted transversal on the rear.

AXLES

Dana Spicer with oil bath disc brakes and planetary reducers.

SPEED

Working speed from 0 to 9 km/h (0 – 5,59 mph), road transfer from 0 to 25 km/h (0 – 15,53 mph) . Electric servo control.

CABIN

Front cab on side of loading shovel. ROPS-FOPS type complete with double closing door. Clima, air conditioning heater available upon request.

JOYMIX

All hydraulic functions of shovel controlled by a single fully servo controlled Joystick.


HYDRAULIC SYSTEM

The hydraulic concrete mixer system is composed by three circuits. 2 variable outlet pumps for hydrostatic transmission and drum rotation. 2 gear pumps for services. Inlet and outlet filter. Heat exchanger water/oil-air type.

WEIGHING

Electronic system. “Load cells” acting on the drum, display and printer in the cab. (on request)

LOADING SHOVEL

Effective capacity per load 600 liters (131 UK gal – 158 US gal), complete with hydraulic opening gate.

CHUTE

Slewing and hydraulically tilting. Fitted with two pins easily detachable to increase the discharge height.

CHUTE

Slewing and hydraulically tilting. Fitted with two pins easily detachable to increase the discharge height.

WATER SYSTEM

Self-contained. Hydraulic driven water pump, water meter, washing outlet. High pressure water pump (on request).

GRADIENT

Fully loaded 30%

BRAKES

Oil bath disc brakes inside differential axles. Twin indipendent circuits. Negative hydraulic parking brake.

TYRES

Off road industrial type 16/70-20 PR 14.

STEERING

Hydrostatic. 3 ways steering. Radius: internal: mm. 1700, external mm 3.700.


ELECTRIC SYSTEM

12 Volt. 120 Ah battery for electric starter and road lighting. Safety battery cut-off.

TANKS

Water: 2×400 liters (2×87 gal UK – 2×105 gal US). Diesel: 115 liters (25 gal UK – 30 gal US) . Hydraulic oil: 80 liters (17 gal UK – 4 gal US).

CHASSIS

Steel profile specially engineered for off-road operations.

WEIGHT

About Kg. 7.400 (16.314,2 lb). Equally distributed on both axles.

SAFETY

Machine equipped with checking and block valves for maximum safety of the operator. Self control avoids drum to slew if shovel’s arm is lifted.

CATALOGUE

The concrete mixer machine is equipped with Use and Manteinance and Spare Parts Manuals according to CE regulations.
